It is a typical drum that used for stransportaion and storage of liquid and other content the
top lid is seamed, contents fill in/ out through inlet

Tight head type drum (standard bead) specification
Class Thickness (mm) Height (mm) Weight
(kg)		 Caliber
(mm)		 Capacity (L)
Body Top,
Bottom		 Inside Outside
SL 0.8 1.0 845±5 883±5 15.3±0.5 567 200
NL 0.9 1.0 845±5 883±5 16.5±0.5
L 1.0 1.0 850±5 888±5 17.75±0.5
LM 1.0 1.2 850±5 888±5 18.75±0.5
M 1.2 1.2 850±5 888±5 21.3±0.5

It is a open head type drum that used for stroage of high viscosity liquid and gel.

Open head type drum (standard bead) specification (after clip band applied)
Class Thickness (mm) Height (mm) Weight
(kg)		 Caliber
(mm)		 Capacity
(L)
Body top,
bottom		 Inside Outside
LM 1.0 1.2 840±5 885±5 20.1±0.5 567 200
M 1.2 1.2 840±5 885±5 22.75±0.5

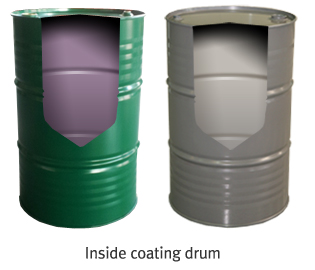

Applicatoin :
the inside is coated with epoxy for liquid content packing of
water solubility and chemical resistance
